Star Trek: Deep Space 9 U.S.S. Defiant

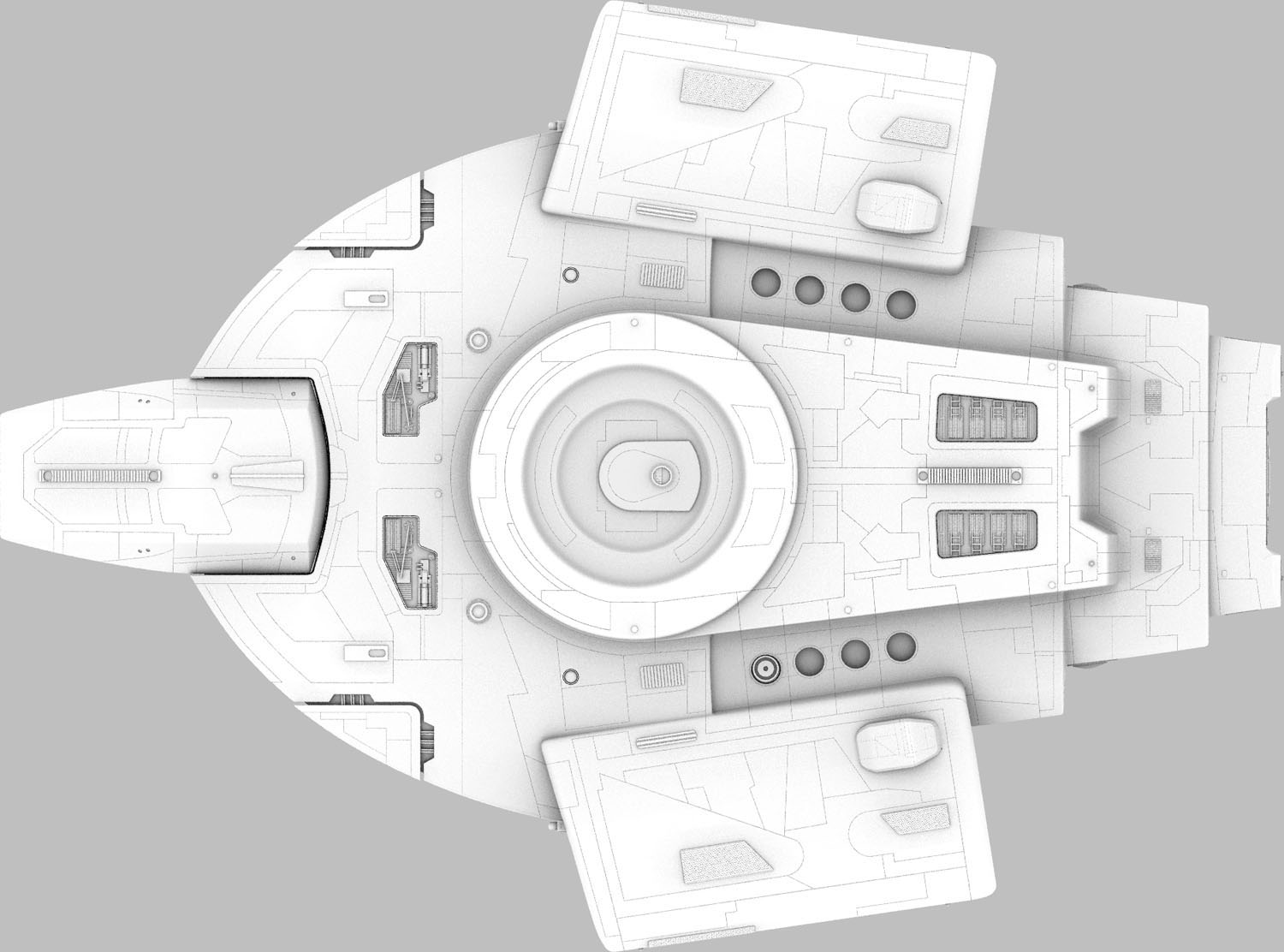

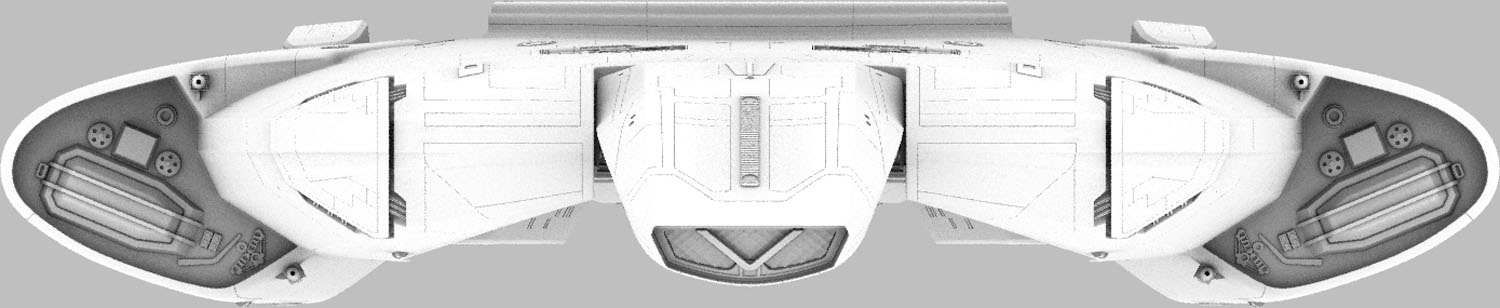

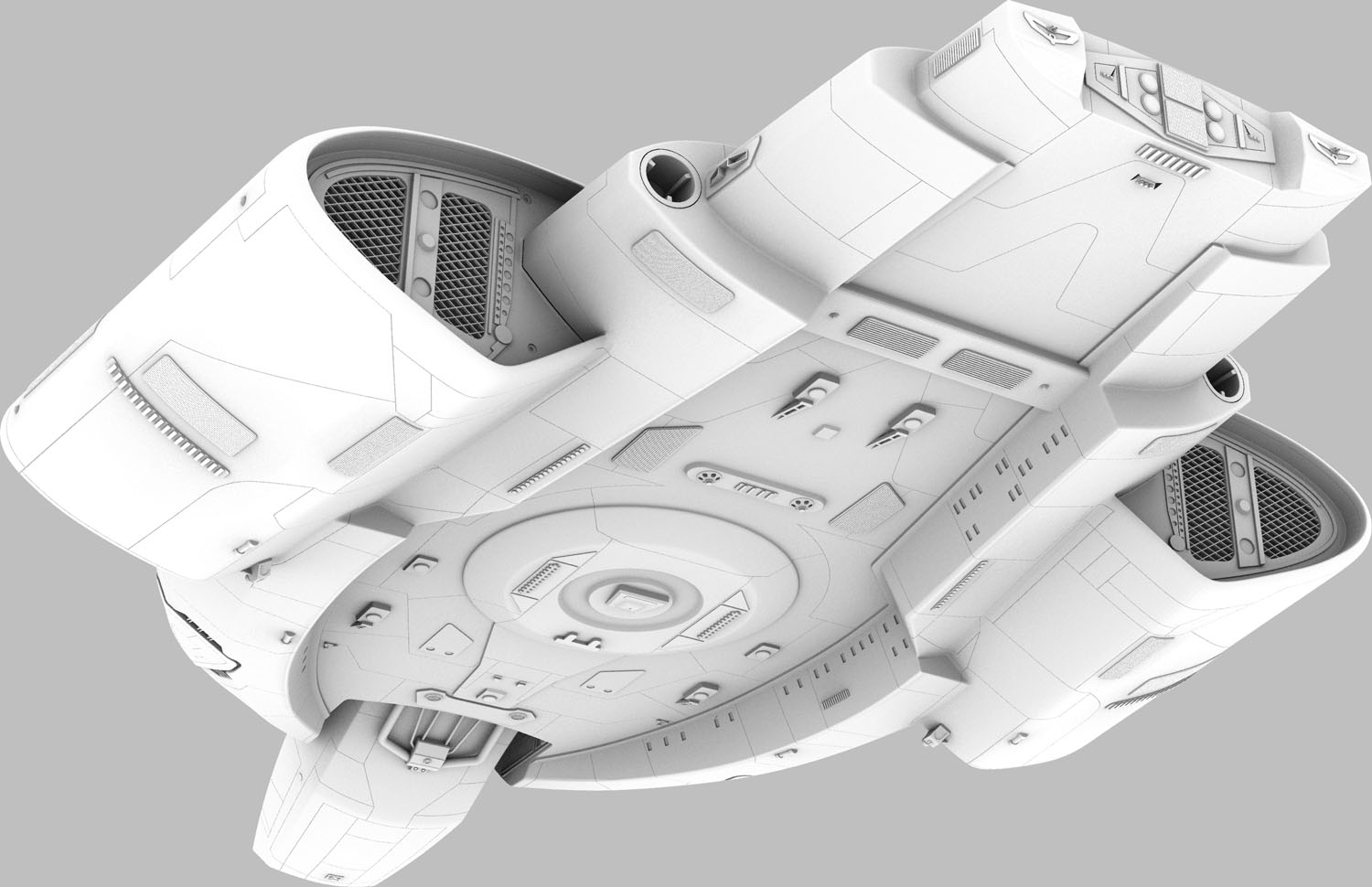

This model was produced with the help of a non-CAD 3D mesh originally made by A.Klemm (Nightfever). As I'm a big fan of "Star Trek: Deep Space 9", I wanted a Defiant model in 1:350 scale to go with other Trek kits I have in this scale and planned to produce my own before coming across Alex's. He did such a great job that I asked his permission to use his model to build up something printable, which I would freely distribute.

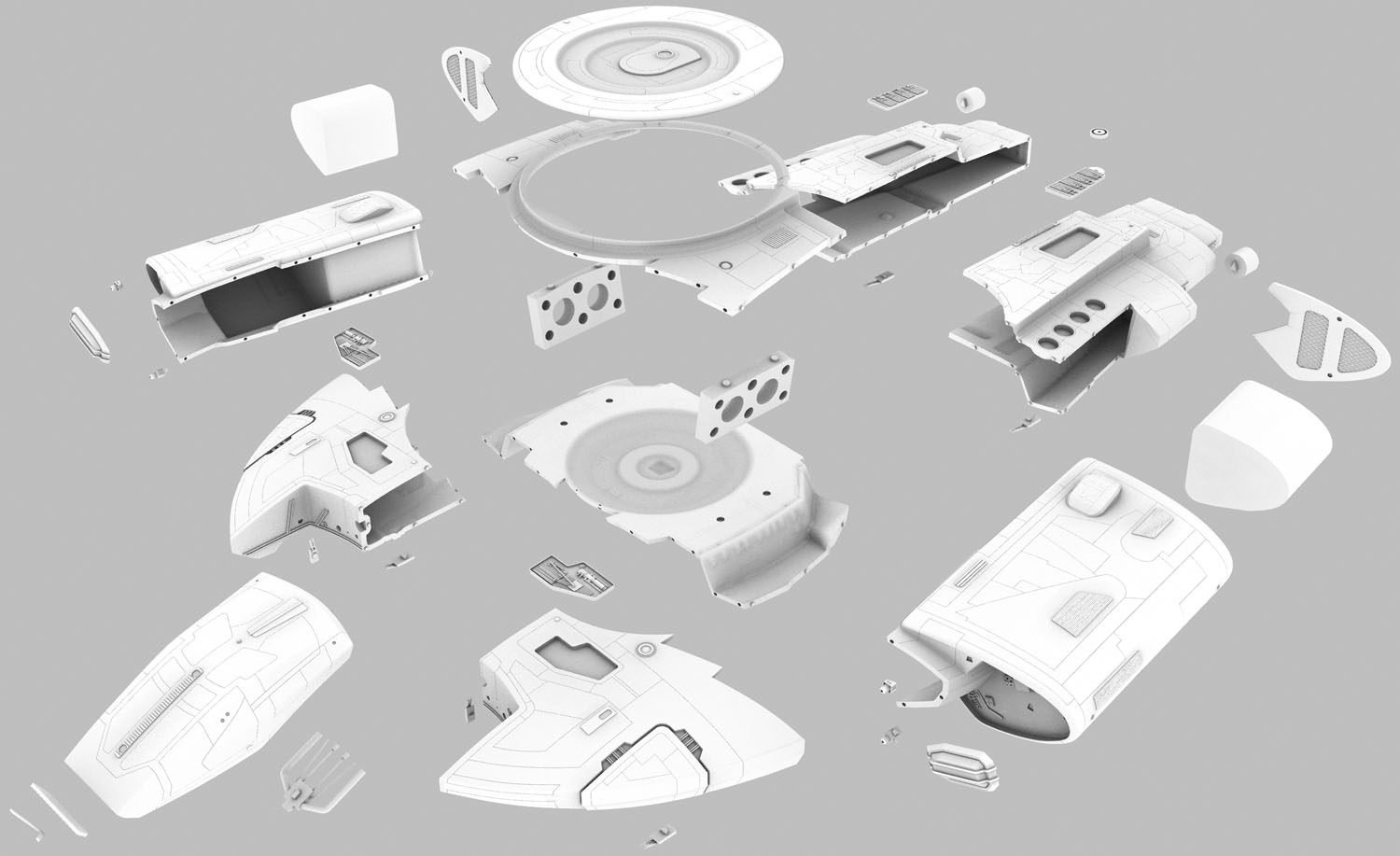

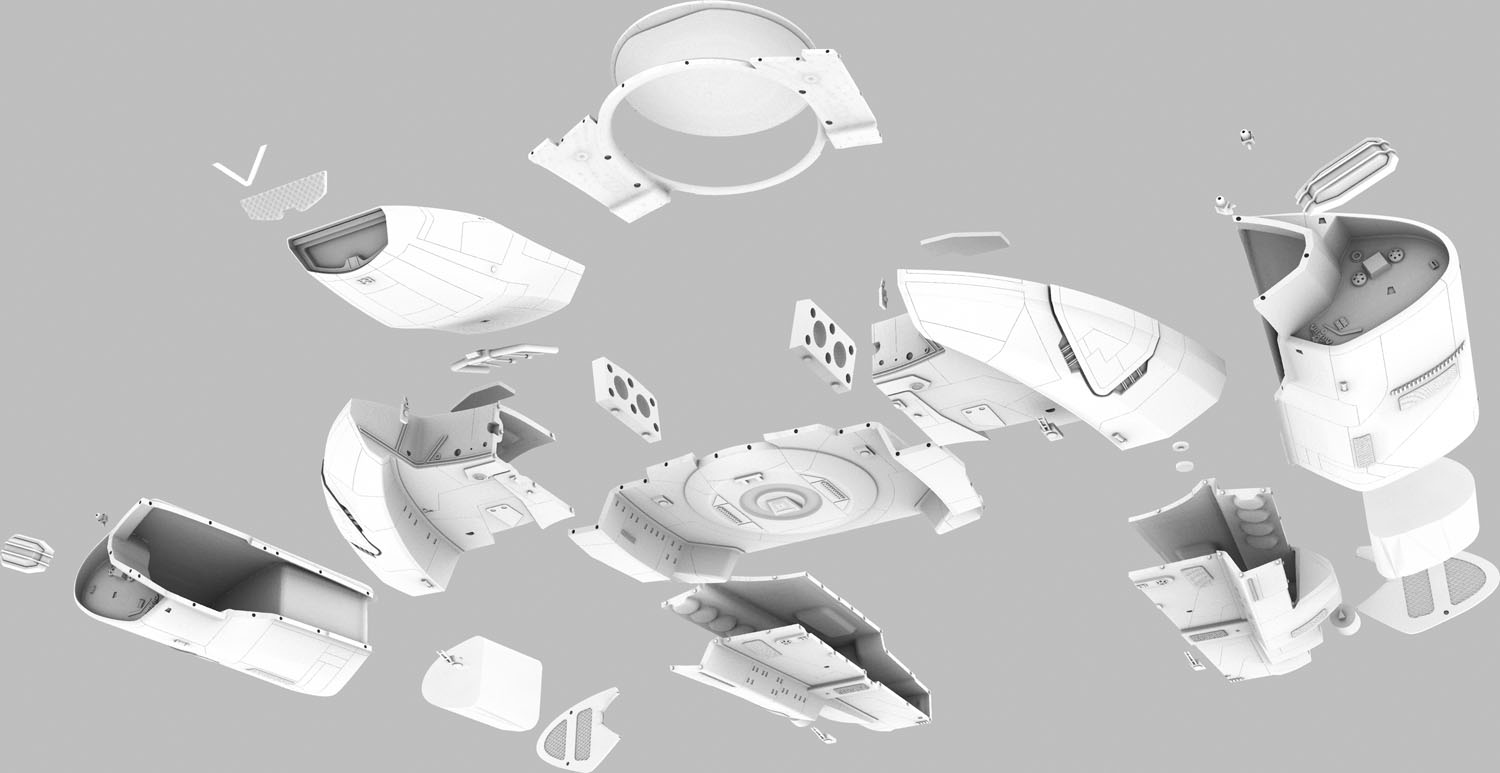

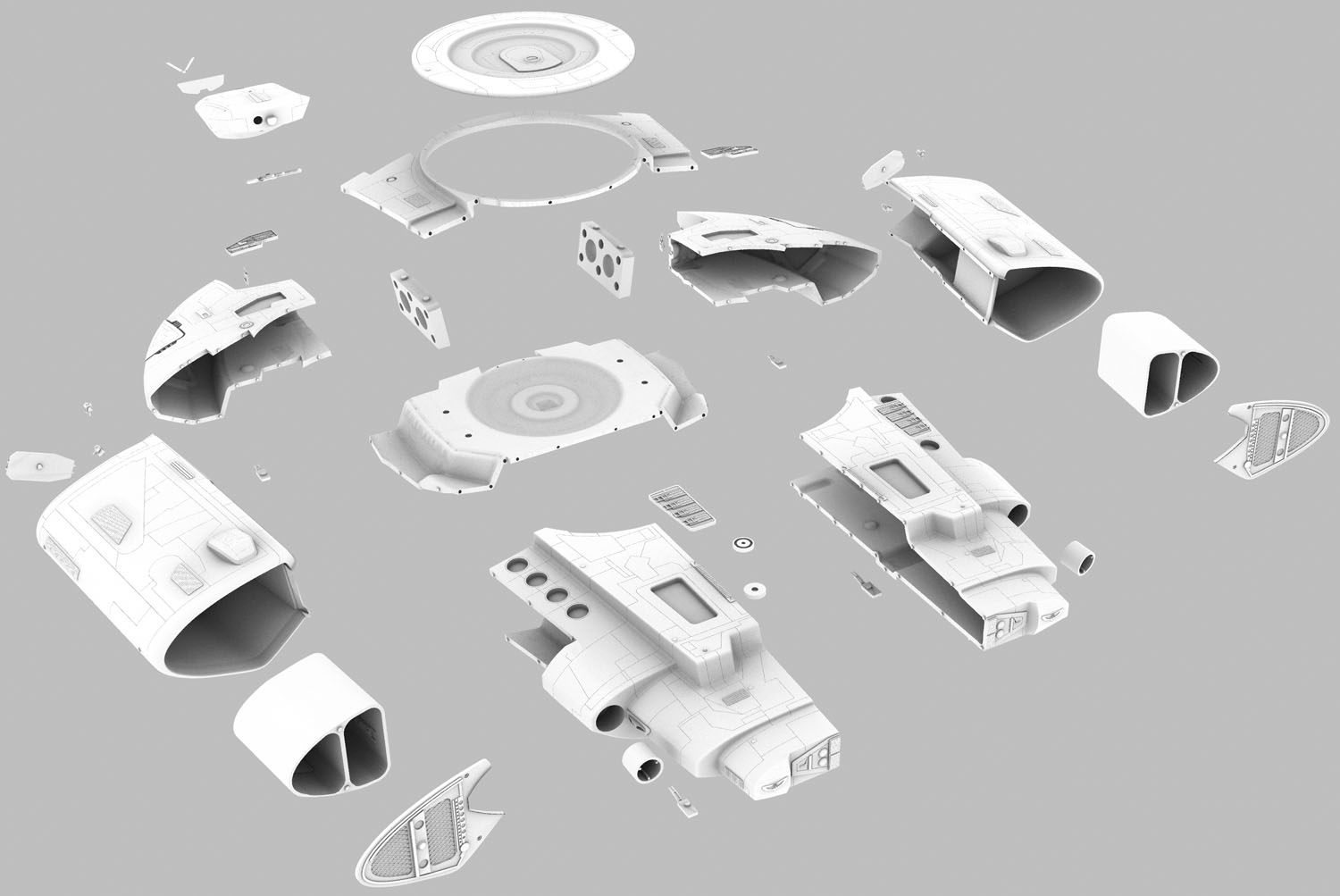

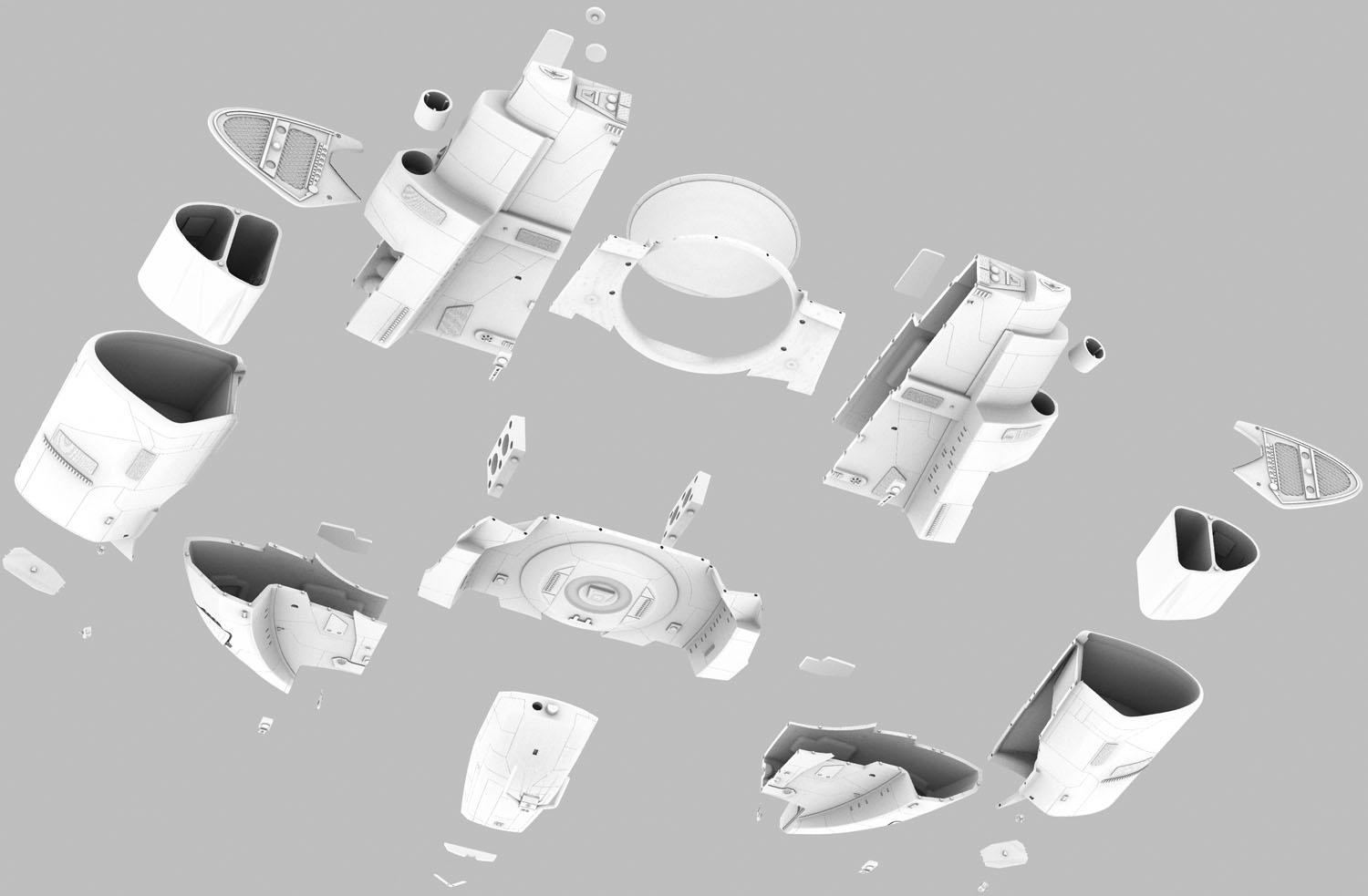

Of the surface appearance of Alex's model, I changed very little besides increasing the geometry resolution to be more suitable for printing and tweaking some details. Also, Alex had some really cool-looking coils inside the main engines but those were neither on the physical studio model nor the CG model used in FX shots. Since I have one of the CG models from the show, I changed the interior of the engines to match that. In breaking down the model, I tried to put the break lines at natural seams or panel lines. To make it fit into the desired envelope, I did need to split the fore and and aft main sections down the middle. You'll note in the images that I've made the circular section at the top removable so a battery case can be accessed for those who want to use one.

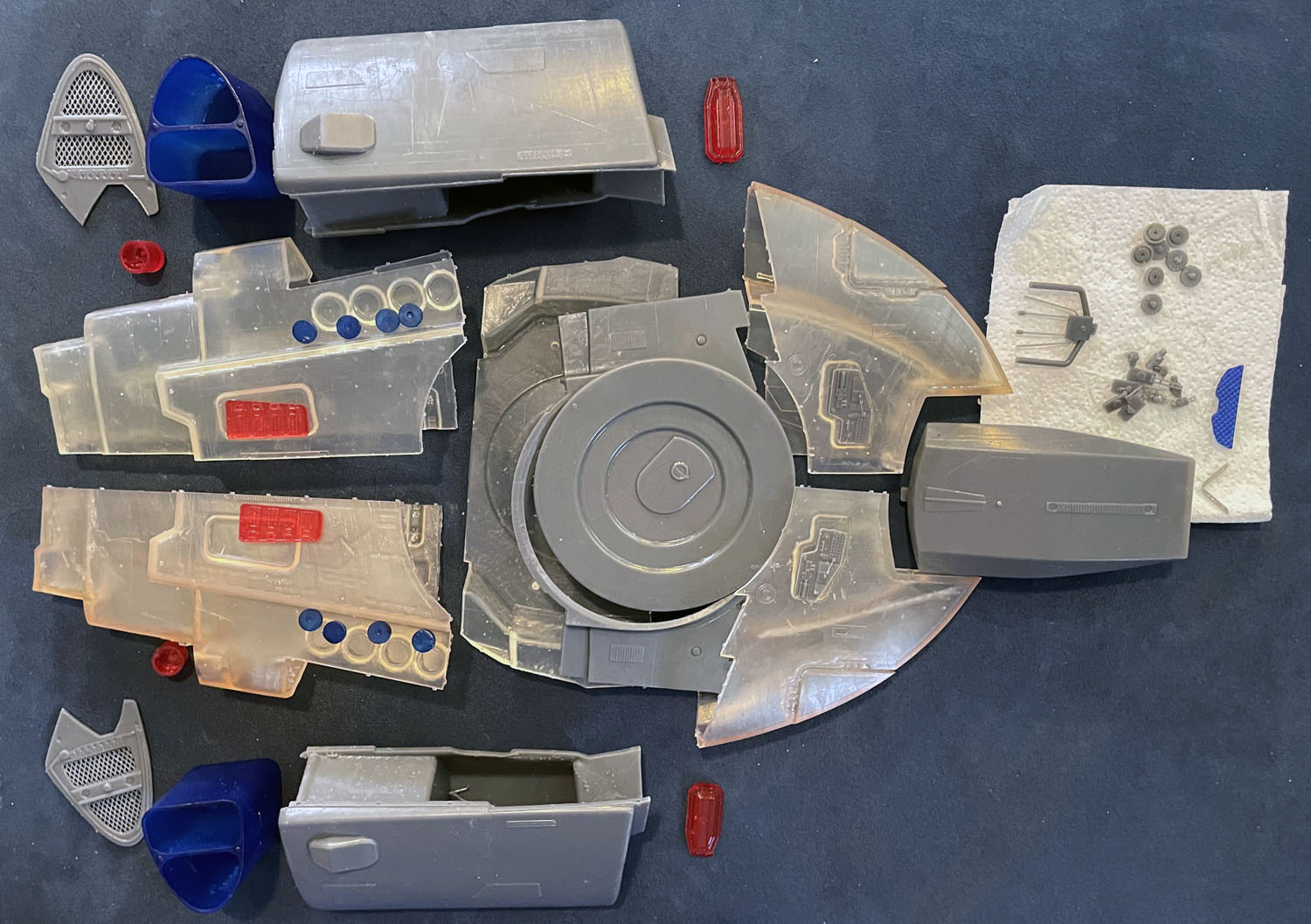

The complete Defiant model consists of 39 separate STL files. For printing, the parts are designed to fit in a build volume of 218mm x 122mm x 200mm. Locating pins and tabs are included on many parts to aid in assembly and parts that might be printed in clear in order to light the model are labeled as such.

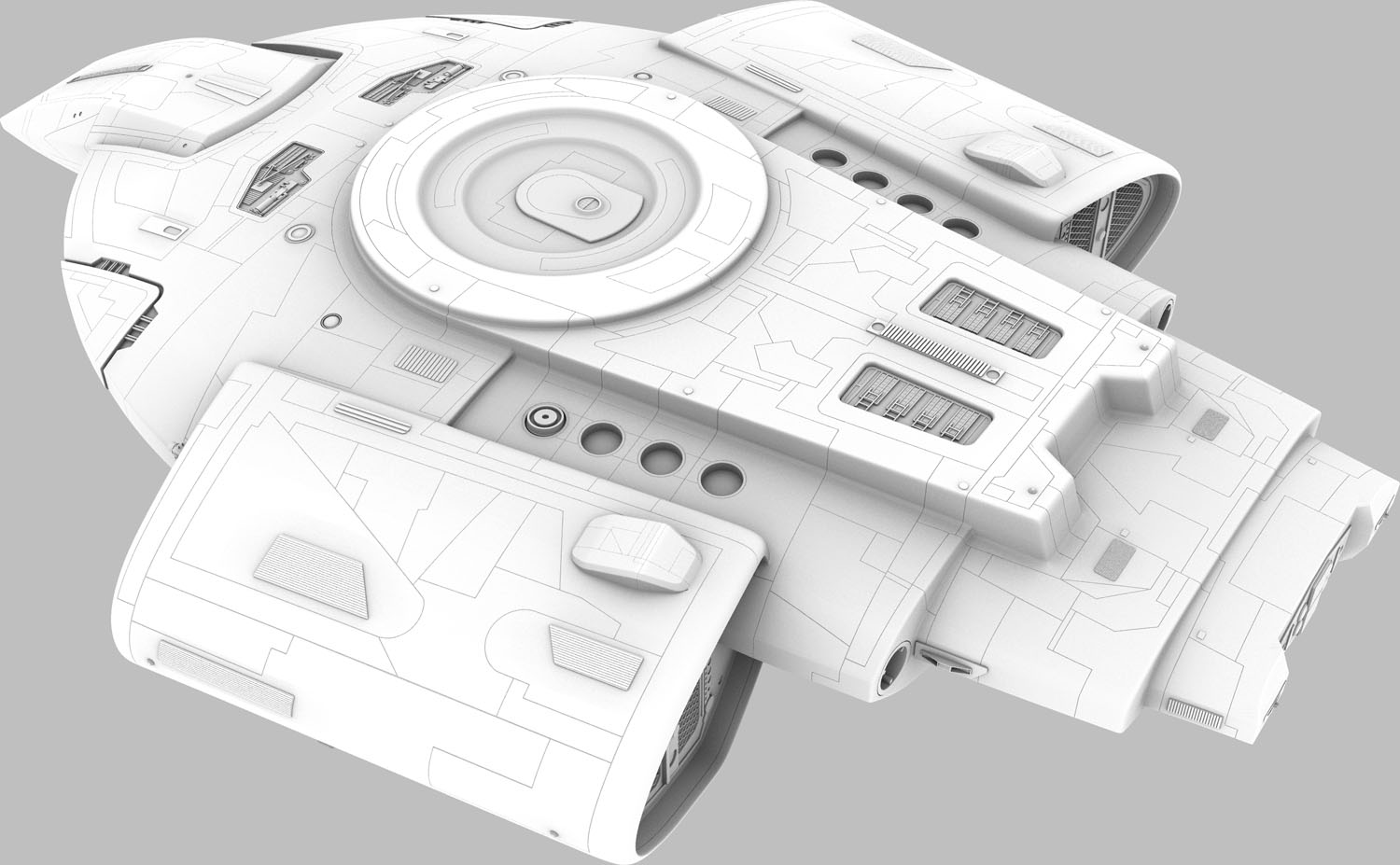

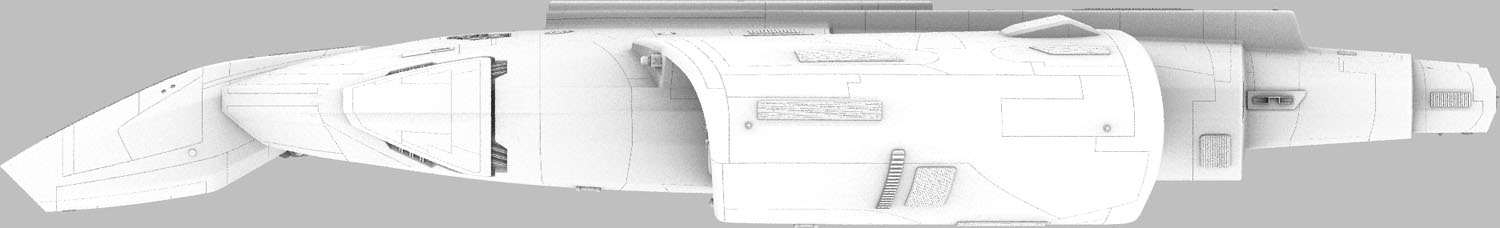

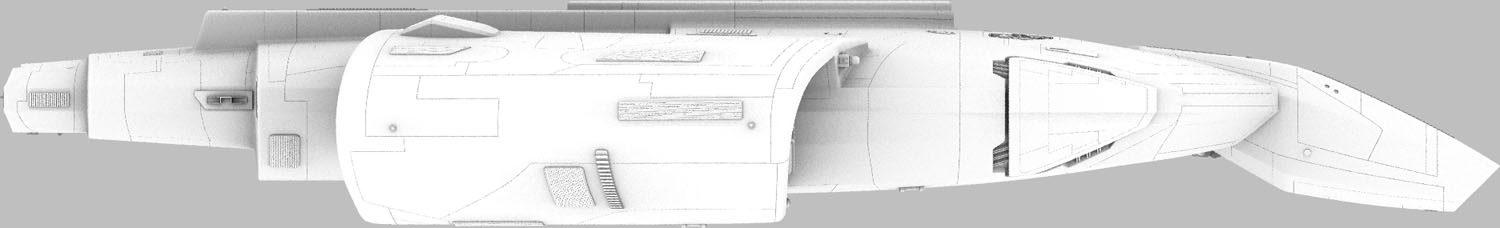

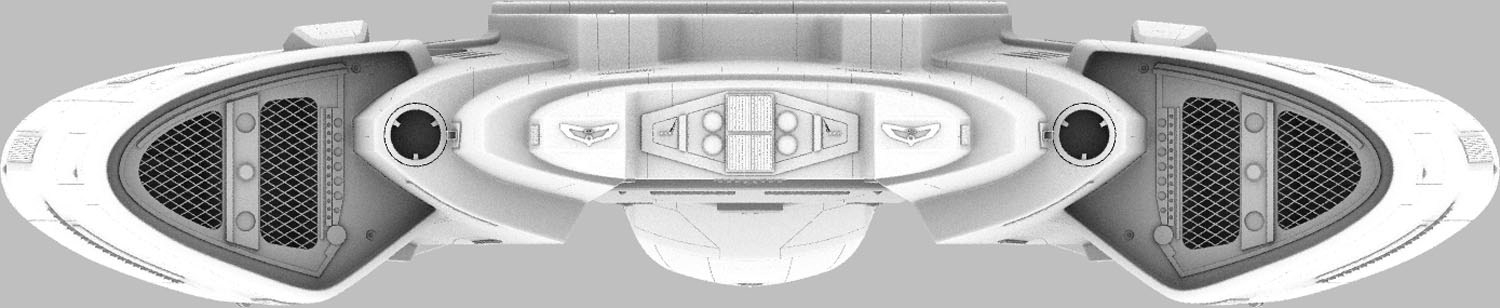

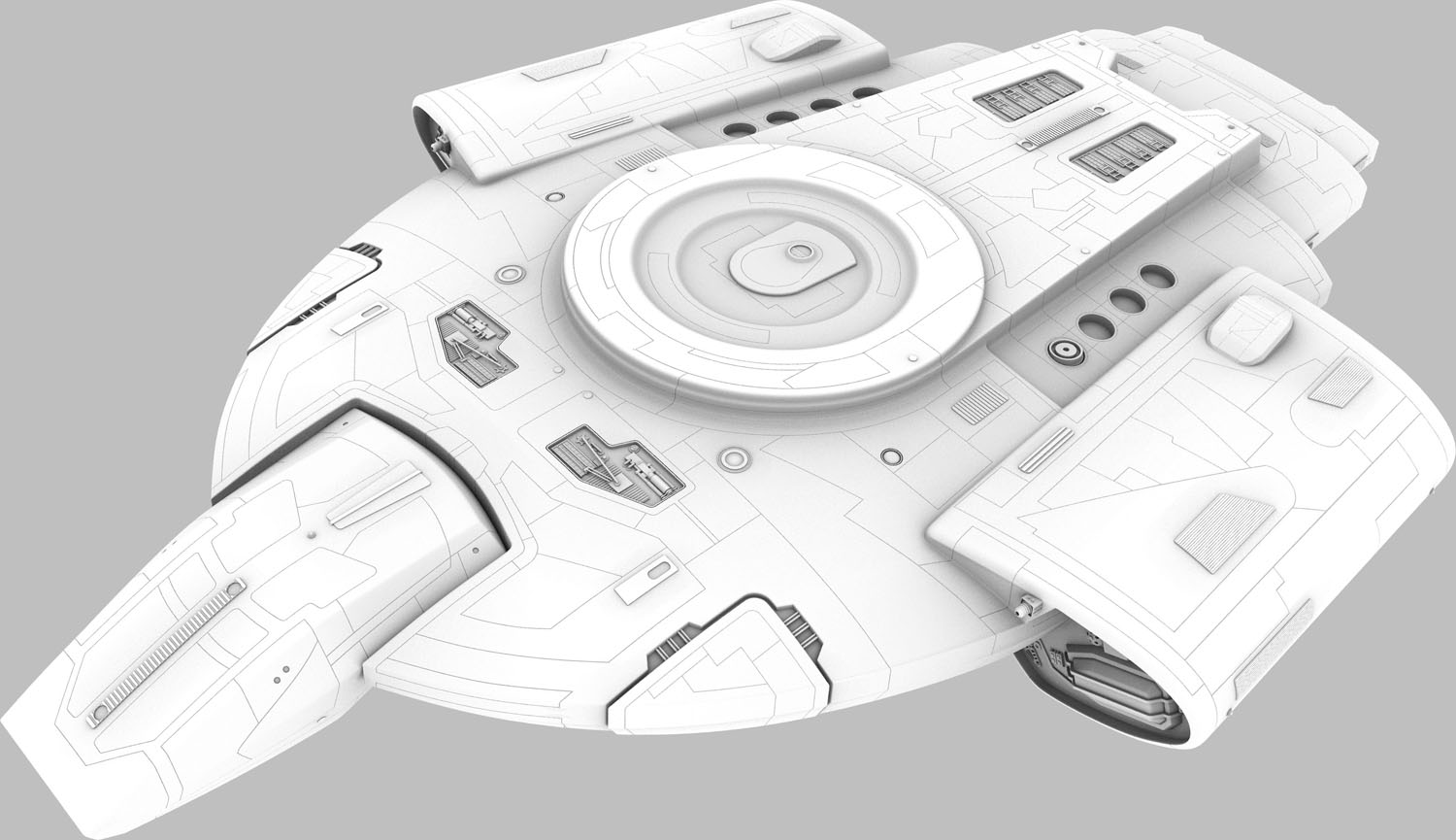

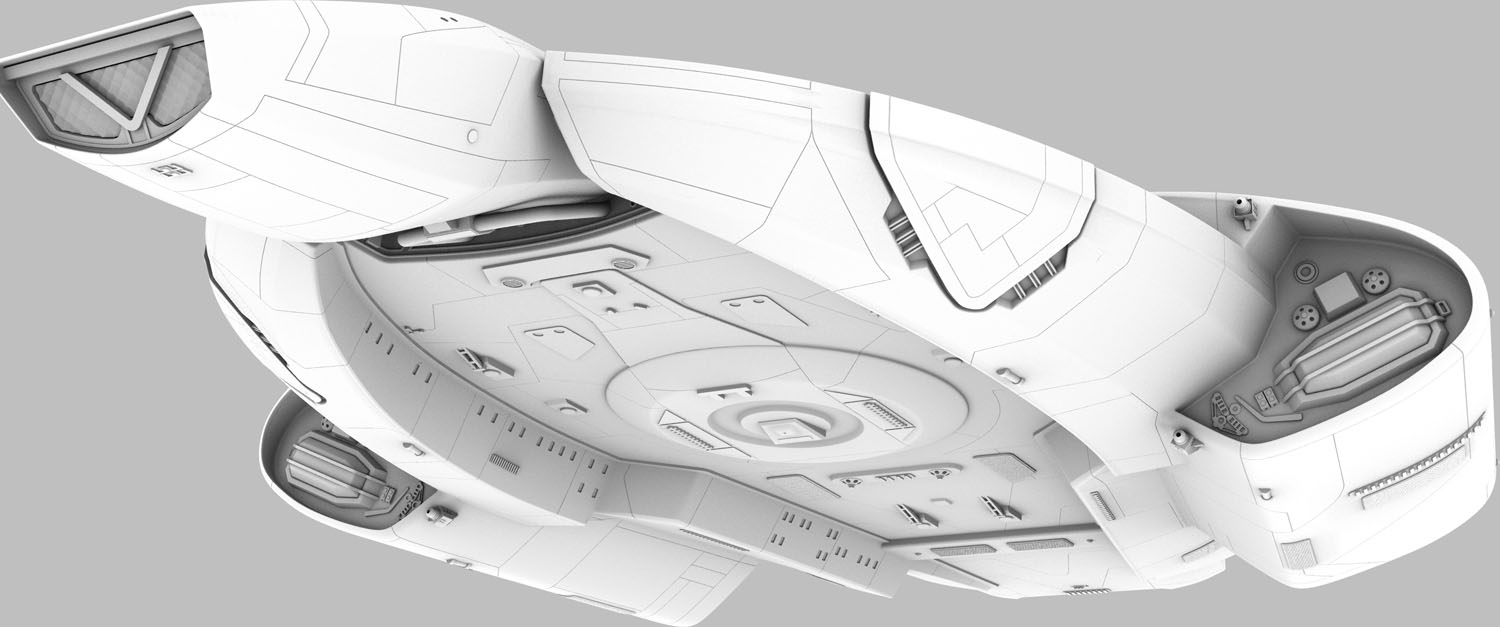

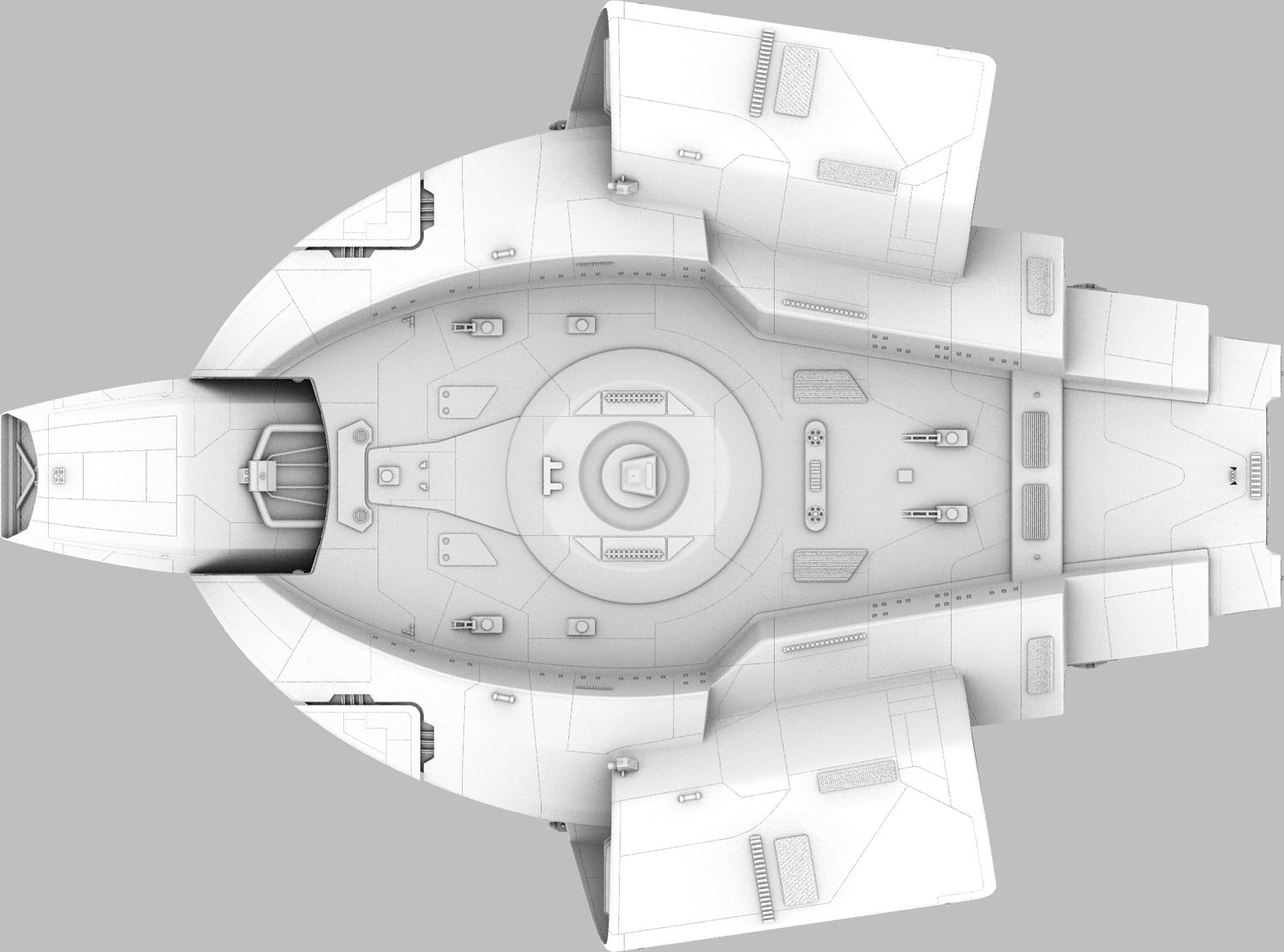

1:350 Defiant 1 1:350 Defiant 2 1:350 Defiant 3 1:350 Defiant 4
1:350 Defiant 9 1:350 Defiant 6 1:350 Defiant 7 1:350 Defiant 8
1:350 Defiant 9 1:350 Defiant 10 1:350 Defiant 11




1:350 Defiant stl 1:350 Defiant 3D 1:350 Defiant model 1:350 Defiant mesh




The completed Defiant model measures about 19.2" x 3" x 14.25".

This model can downloaded here under the following conditions:

It will be used for personal, non-commercial use only.
It will not be shared or made available anywhere else but this website.

Be advised this is 56 megabyte download.


If you download this model, please consider making a donation to help support my work. If sufficiently motived, I may release the CAD model of my 1/1000 Enterprise D under the same conditions as this Defiant.


I do offer a decal sheet for this model which can be purchased below and a decal placement guide can be found here.

The decal sheet is available to the United States, Canada, UK/Europe, Australia/New Zealand and Japan only.

If you don't wish to use PayPal or would prefer a credit/debit card or check/money order, please use the "Contact" link above to send me an email.

Decals will be shipped in a flat-rate U.S. Priority Mail envelope. Unfortunately, It really does cost $40 more to ship these outside the U.S.


Please be sure your correct email and shipping addresses are included with your PayPal payment! If you don't hear from me within a day, check your email spam folder or use the "Contact" link above.





I may be printing some copies of this model to make available for those who don't have plans to own a 3D printer. If you're interested in being notified when I have them available, please see the bottom of this page to the subscribe to my mailing list.


Thanks for your interest!
